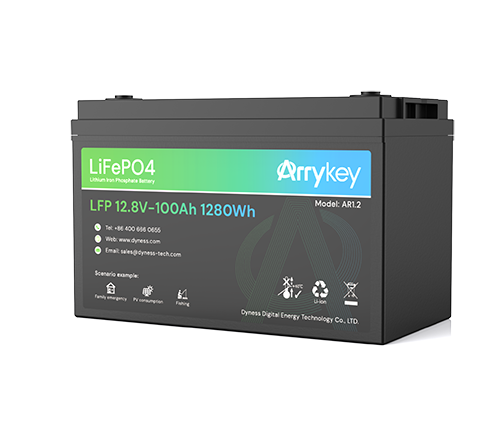

Dyness LFP 12.8V-100Ah 1280Wh Lithium ion Battery

Product Features

• High Energy Density
• Advanced LiFePO4 Technology
• Integrated Battery Management System (BMS)
• Lightweight and Portable
• Eco-Friendly
• Wide Operating Range
• Easy installation
• Efficient Power Management
• IP65 High protection level
• 3000 Cycles
• 2 Years Warranty

Detailed Features

• High Energy Density – Compact and lightweight compared to lead-acid batteries, providing more power in a smaller space.
• Long Lifespan – Up to 3000 cycles at 80% Depth of Discharge (DOD), ensuring years of reliable use.
• Built-in Battery Management System (BMS) – Protects against overcharge, over-discharge, overcurrent, and short circuits.
• Deep Cycle Performance – Supports full charge and discharge cycles without affecting battery health.
• Fast Charging Capability – Charges quicker than lead-acid batteries, reducing downtime.
• Maintenance-Free – No need for water refilling or regular maintenance.
• Wide Operating Temperature Range – Performs efficiently in extreme temperatures, making it suitable for various environments.
• Eco-Friendly & Safe – Uses non-toxic LiFePO₄ chemistry, eliminating risks of thermal runaway and fire hazards.

Technical Specifications

• Brand: Dyness
• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Nominal Voltage: 10-14.8V
• Nominal Capacity: 100Ah
• Energy Storage Capacity: 1280Wh
• Cycle Life: 3000 cycles
• Maximum Charge Voltage: 14.6V
• Discharge Cut-off Voltage: 10.8V
• Max Continuous Discharge Current: 100A
• Max Charge Current: 50A
• Battery Management System (BMS): Built-in, with protection features
• Operating Temperature Range: Charging: 0°C to 55°C Discharging: -20°C to 55°C
• Parallel & Series Connection: Supports parallel and series connections for increased capacity and voltage
• Certifications: CE, UN38.3, RoHS, MSDS
