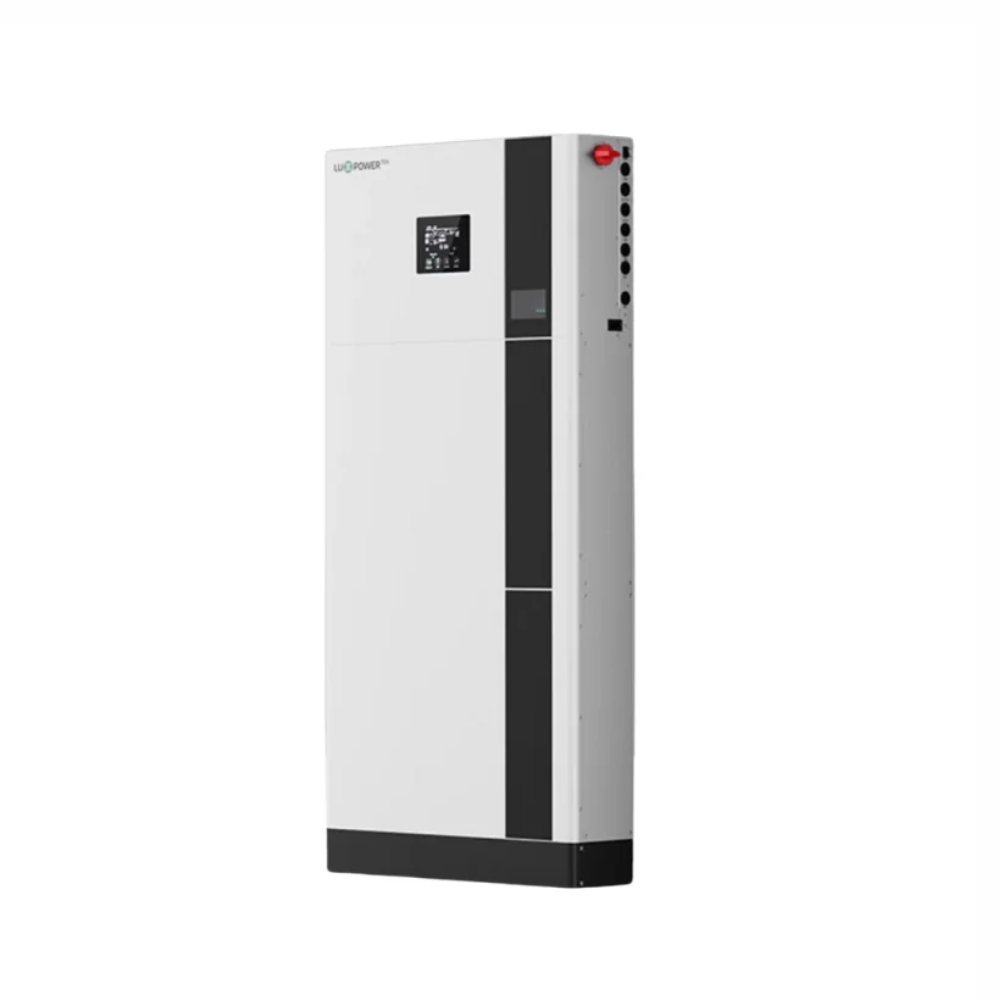

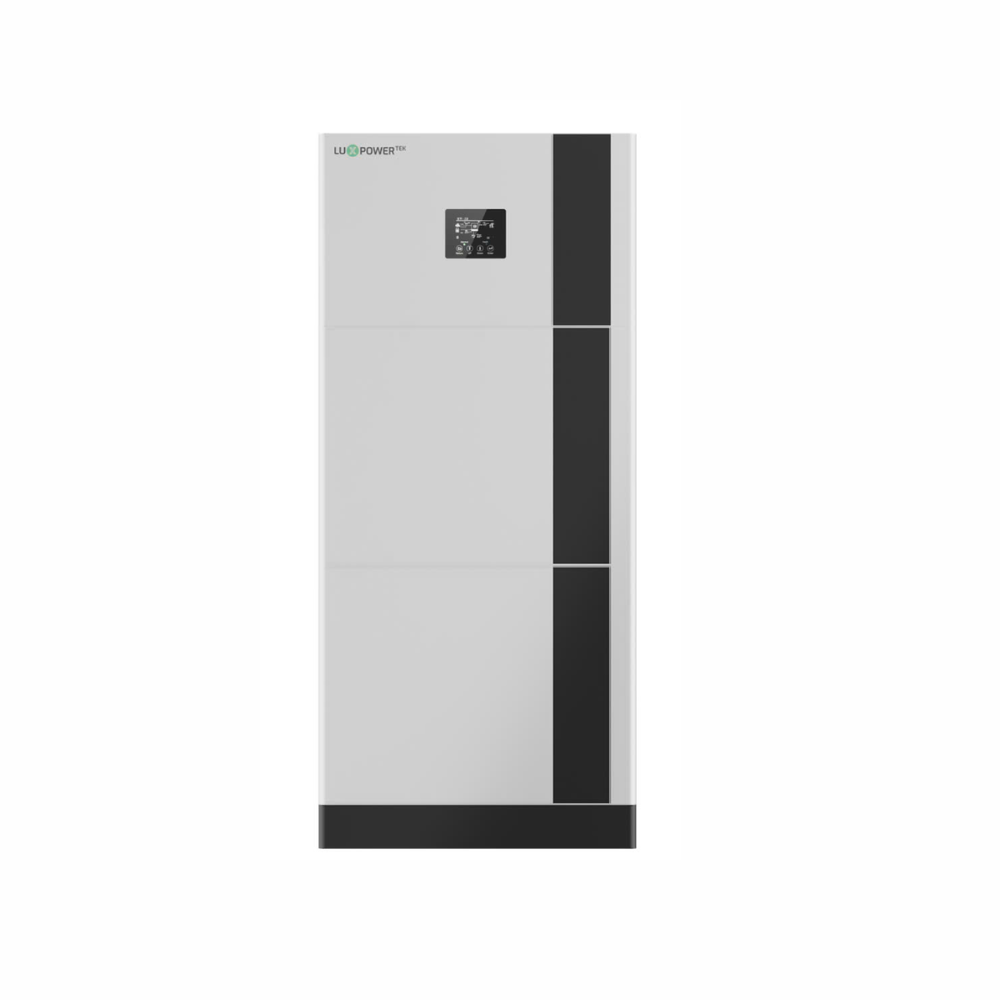

Name: Luxpower Eco Beast All -in-One Inverter Battery Combo 6kW-10kWh
Brand: Luxpower
SKU: 15973
Availability: InStock

Description

Inverter Module Specifications

Input (PV DC)

Max. PV Array Power: 8000W (4000/4000)
Rated PV Input Voltage: 320V
Number of Independent MPPT Inputs: 2
PV Input Voltage Range: 100~480V
MPPT Voltage Range: 120~385V
Start-up Voltage: 100V
Max. PV Input Current per MPPT: 17A
Max. PV Short-circuit Current per MPPT: 25A
Max. PV Charging Current: 125A

battery input

Battery Voltage: 38.4~60V
Max. Charging/Discharging Current: 125/140A
Max. Charging/Discharging Power: 6000W

UPS Output @ Off-Grid

Output Voltage Waveform: Pure sine wave
Output Voltage Regulation: 208/220/230/240±5%
Output Frequency: 50/60Hz
Rated Output Power: 6000W
Rated Output Current: 26.5A
Peak Efficiency: 93%
Overload Protection: 5s@≥150% overload; 10s@110%~150% overload
Surge Power: 2*Pn, 5s
Parallel Quantity: 16pcs

AC Input

Nominal Input Voltage: 230V
Nominal Input Frequency: 50/60Hz (Auto detection)
Max. AC Input Current: 39.5A
Max. AC Input Power: 9000W
Max. AC Charging Current: 125A

AC Output @ Grid

Rated AC Output Current: 26.5A
Rated AC Output Power: 6000W
Rated AC Current of Bypass Relays: 60A
Switching Time: Typical <10ms @ Single; <30ms @ Parallel

Generator Input

Rated GEN Voltage: 220/230/240V
Rated GEN Frequency: 50/60Hz
Rated GEN Input Current: 32A
Rated GEN Input Power: 7370W
Rated GEN Current of Bypass Relays: 60A

Battery Module Specifications

battery

Battery Power: 5.12kWh
Rated Voltage: 51.2V
Rated Capacity: 100Ah
Battery Type: Lithium-ion
Max. Parallel (Default): 2PCS
Max. Discharging Current: 100A
Max. Charging Current: 100A
Dimension (WHD): 580434165mm
Net Weight: 54kg
Standard: UN38.3, CE

Protection/General Specifications

Grid Monitoring: Yes
AC Surge Protection Type III: Yes
Safety Certification: CE, UN38.3, NRS097
Dimension (WxHxD): 580x1300x165mm (default)
Net Weight: 125.4kg
Ingress Protection Rating: IP20
Display & Communication Interface: LCD+LED, RS485/Wi-Fi/CAN
Cooling Method: Smart Cooling
Topology: Transformer-less
Noise Emission (typical): <58dB
Operating Temperature Range: 0~45°C
Storage Temperature: -15~60°C
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Altitude: <2000m

Download the Eco Beast User Manual
